After a ton of work and long time for testing I reach a good performance of my electric assist system for the hydrofoil
Following you can find more informations to do by yourself parts or the entire foil assist system.
But remember, make this only if you are really expert in electronic and mechanics.
If you find informations and download file of parts consider to make a donation. It will help me to mantein this project alive
This page is under construction, let me know if you are interested in its development or collaboration. email: roberto.assiro@gmail.com
Case of transmitter (controller body parts)
STL files (last version) ThingiverseFirmware for transmitter and receiver
Source code Bill of material

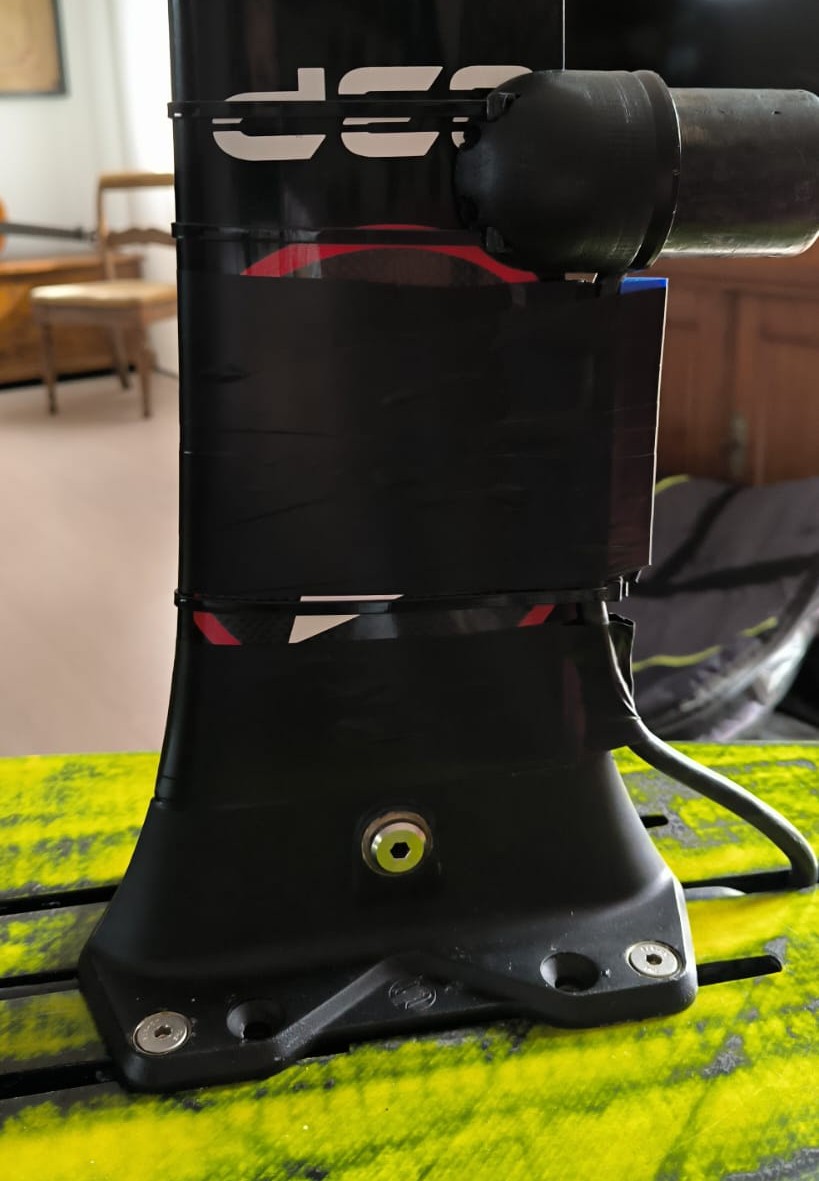

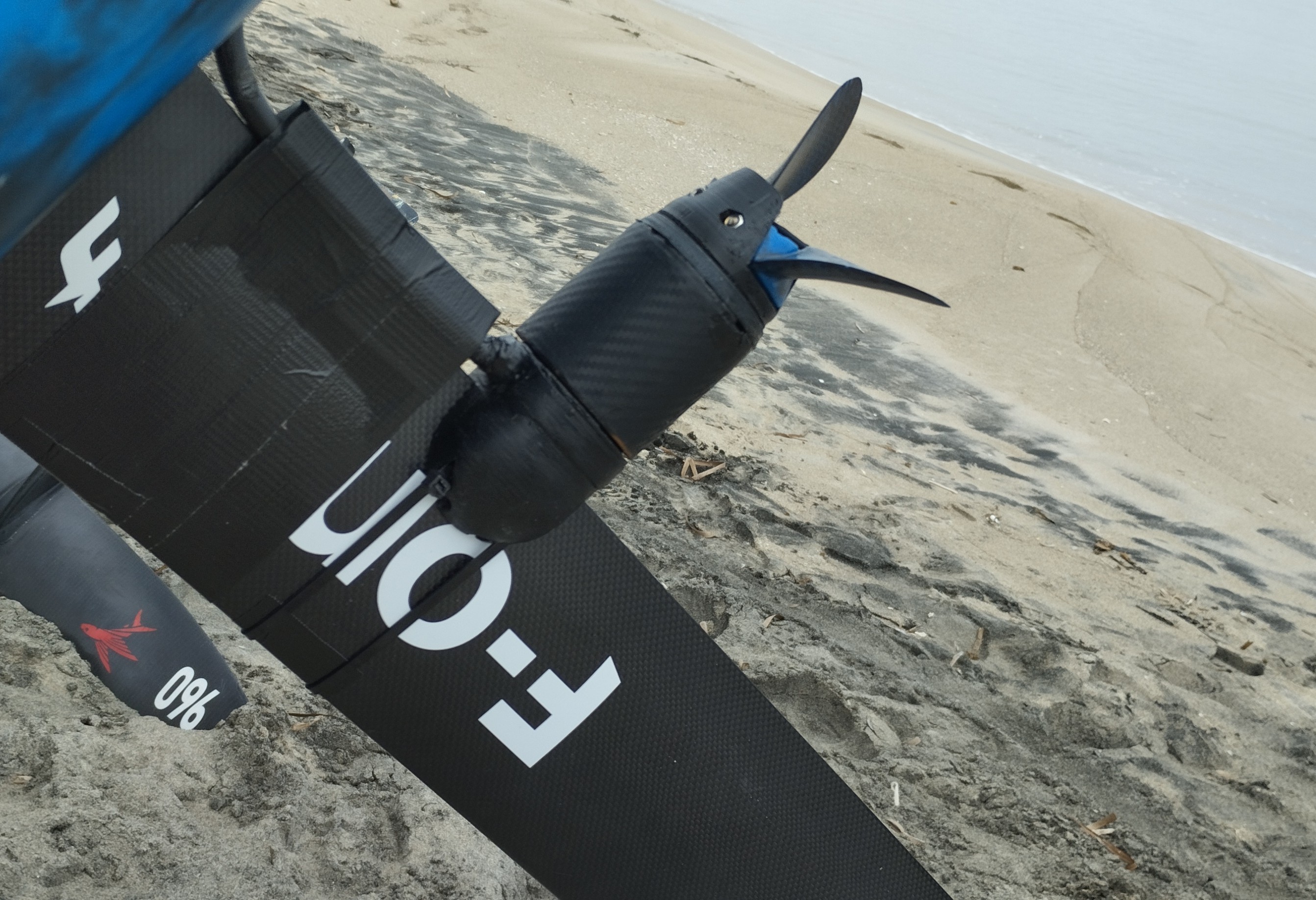

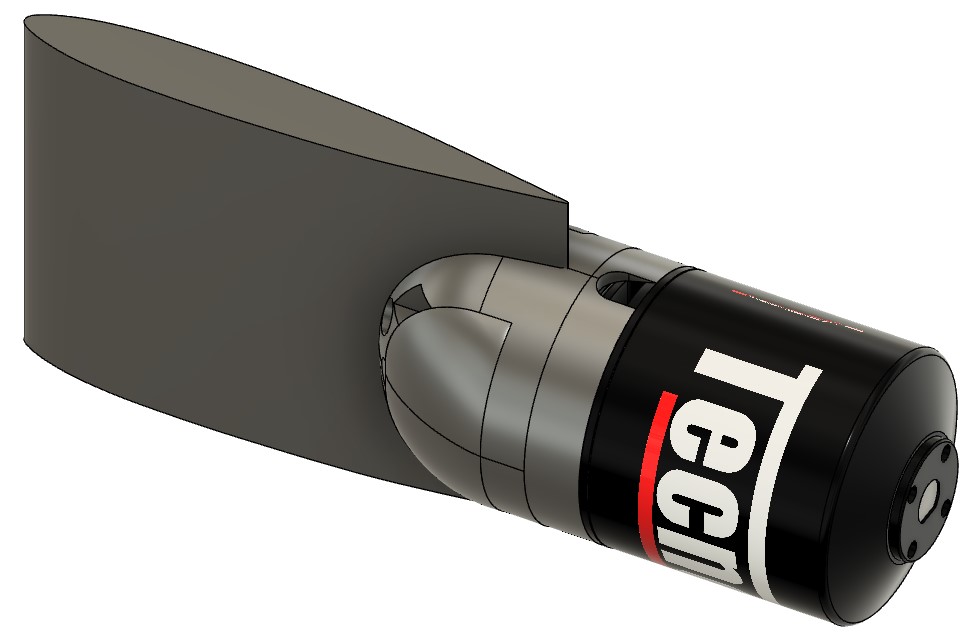

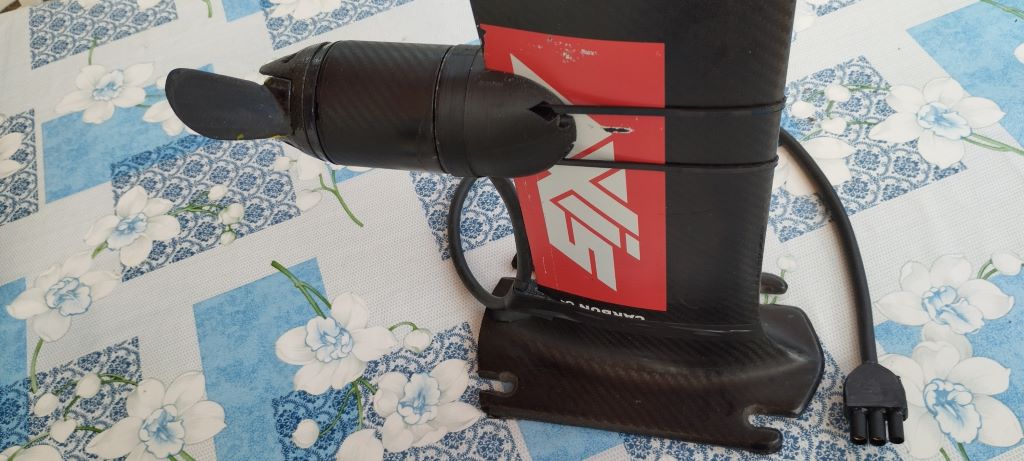

There are several motor mount for the mast, but in my opinion the easly and fast solution is with the cable ties

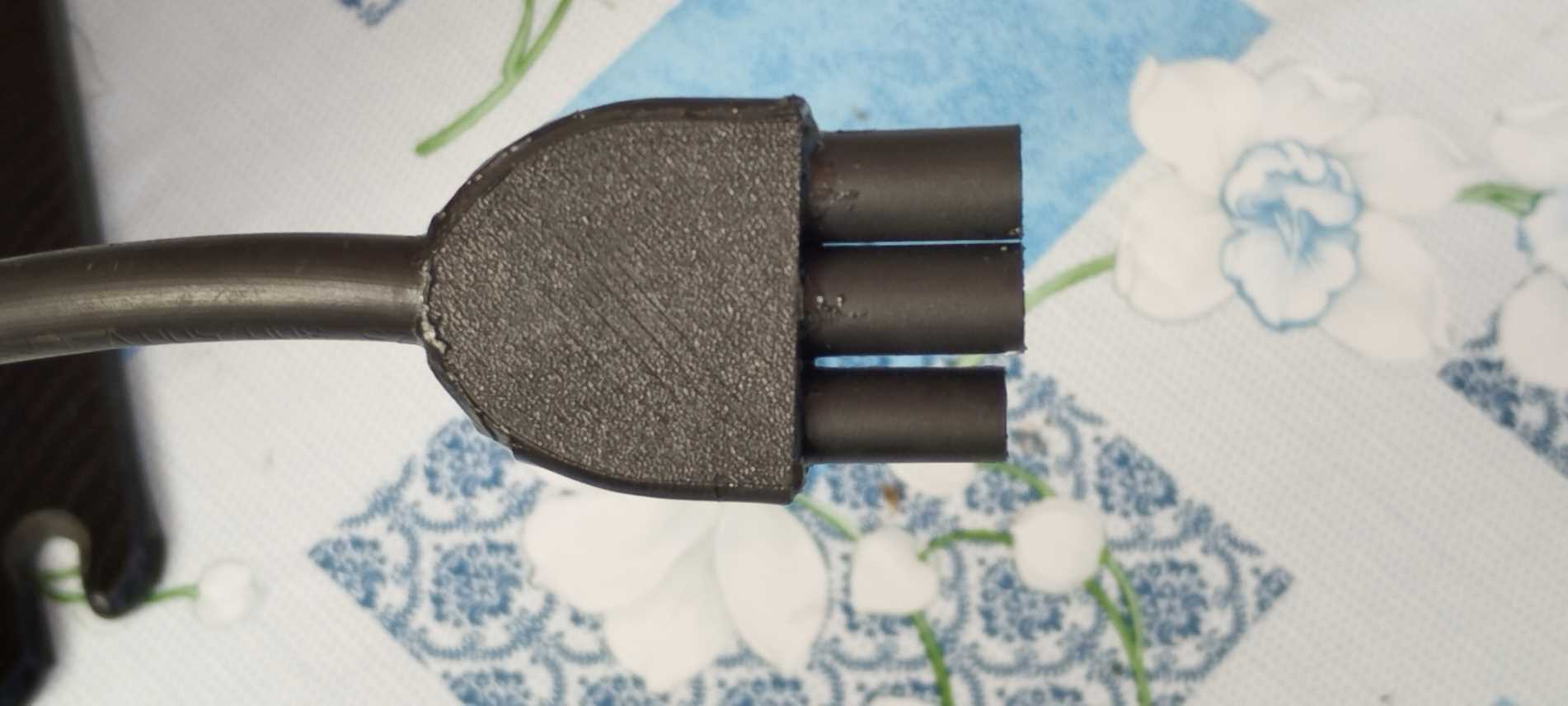

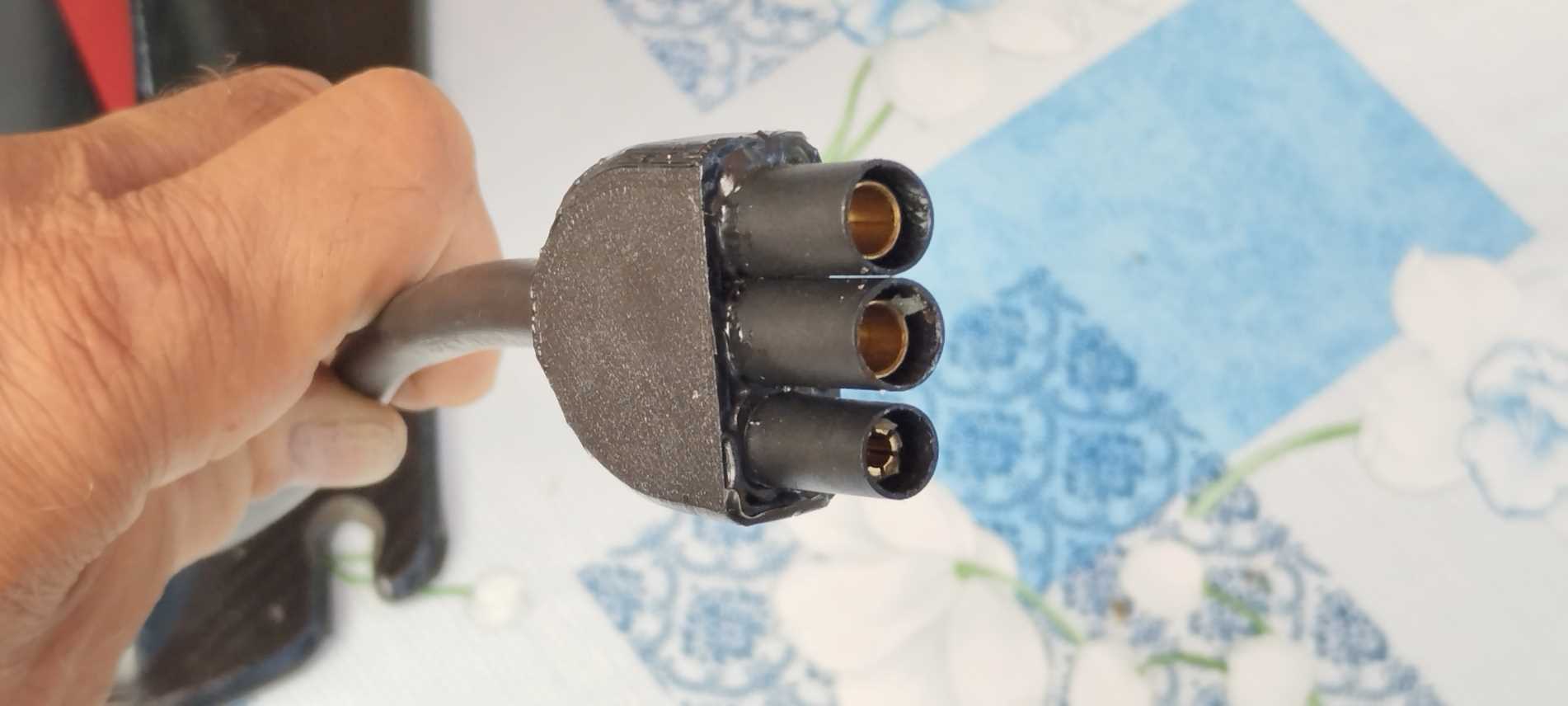

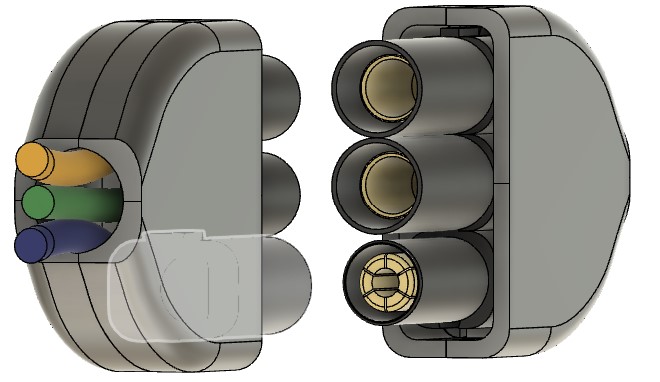

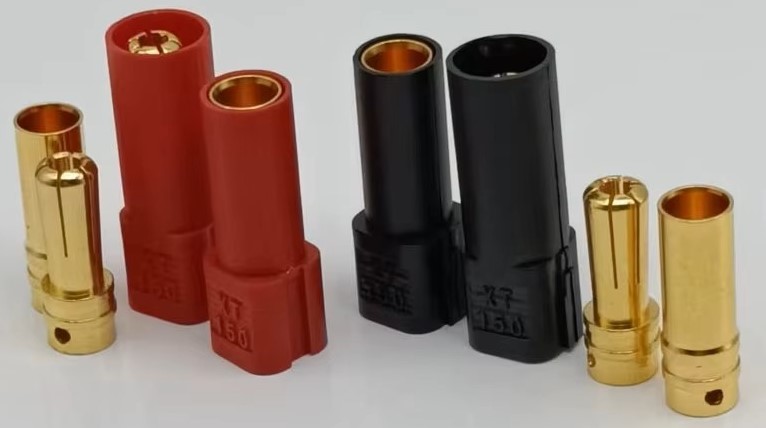

Motor connector are based on XT150 plugs
It's polarized by the different shape of the plugs

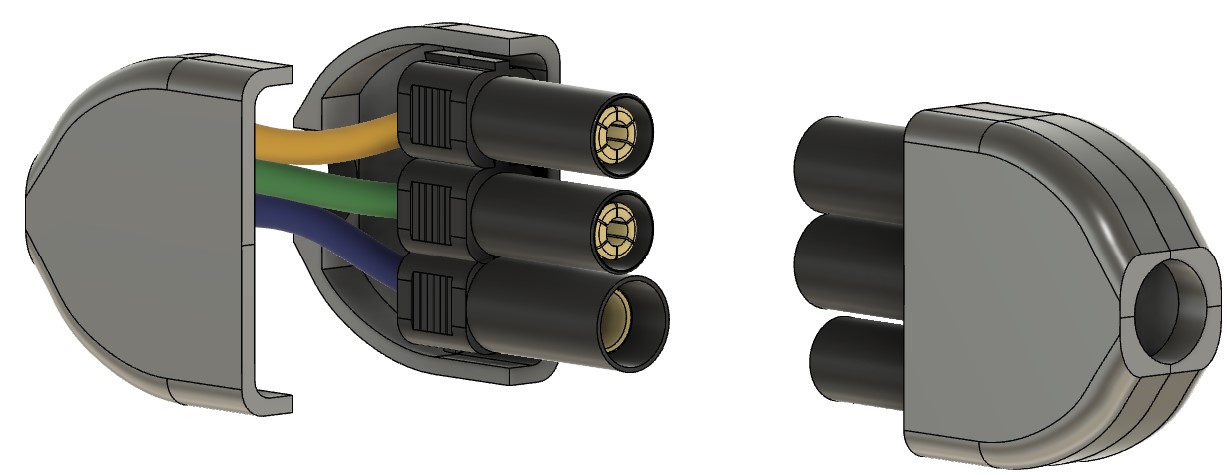

By epoxy resin the double cover is glued with the plugs connected on the cables

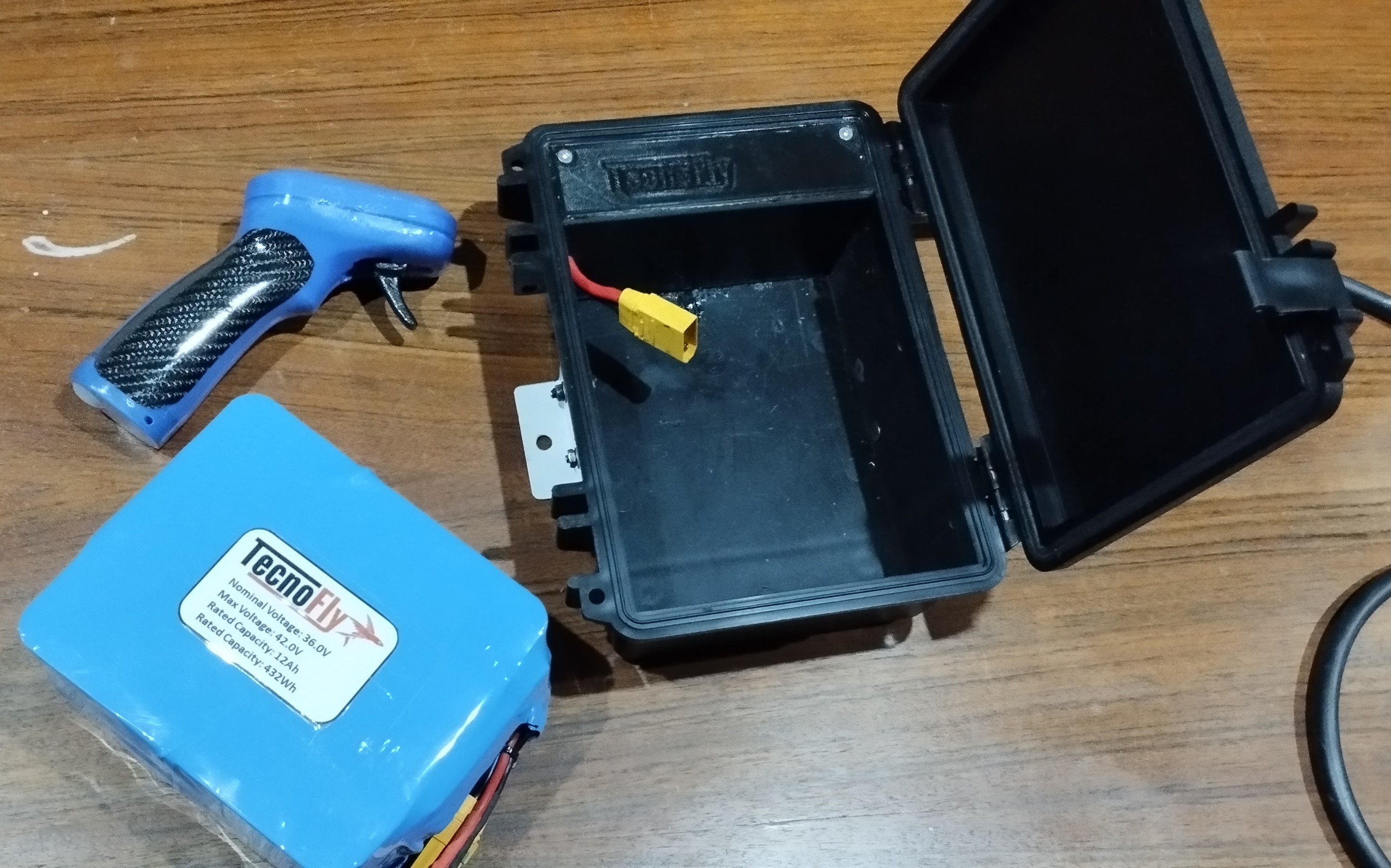

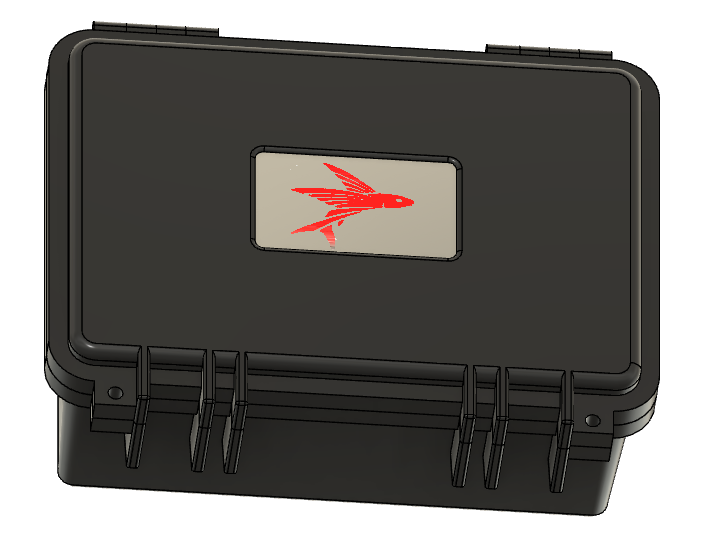

The box used in my project
