Foil Assist Project

The electric assist system to get riding on the hydrofoil

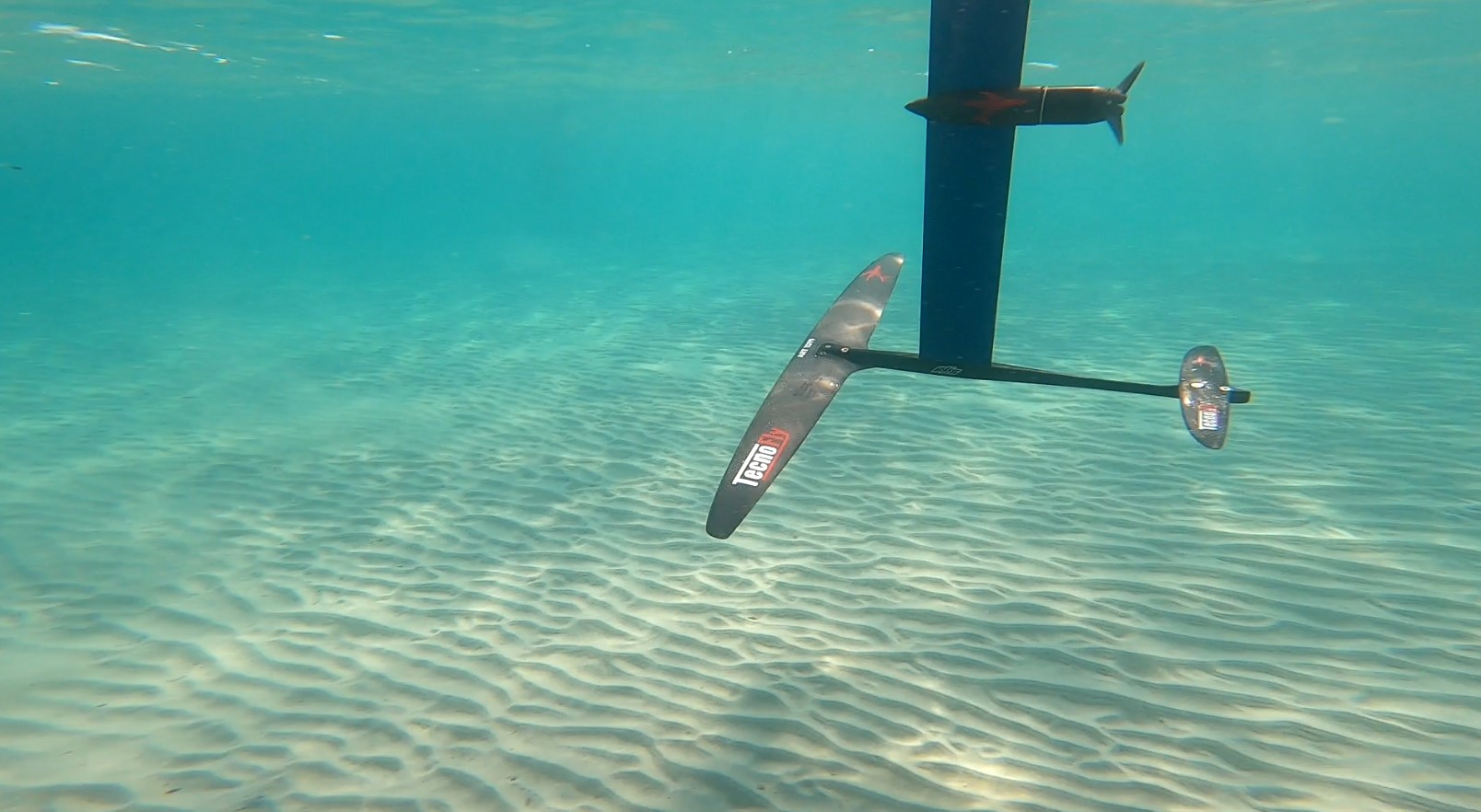

Thanks to a brushless motor and folding propeller controlled by a wireless remote is possible to takeoff on a board to a hydrofoil

Photo gallery
#

#

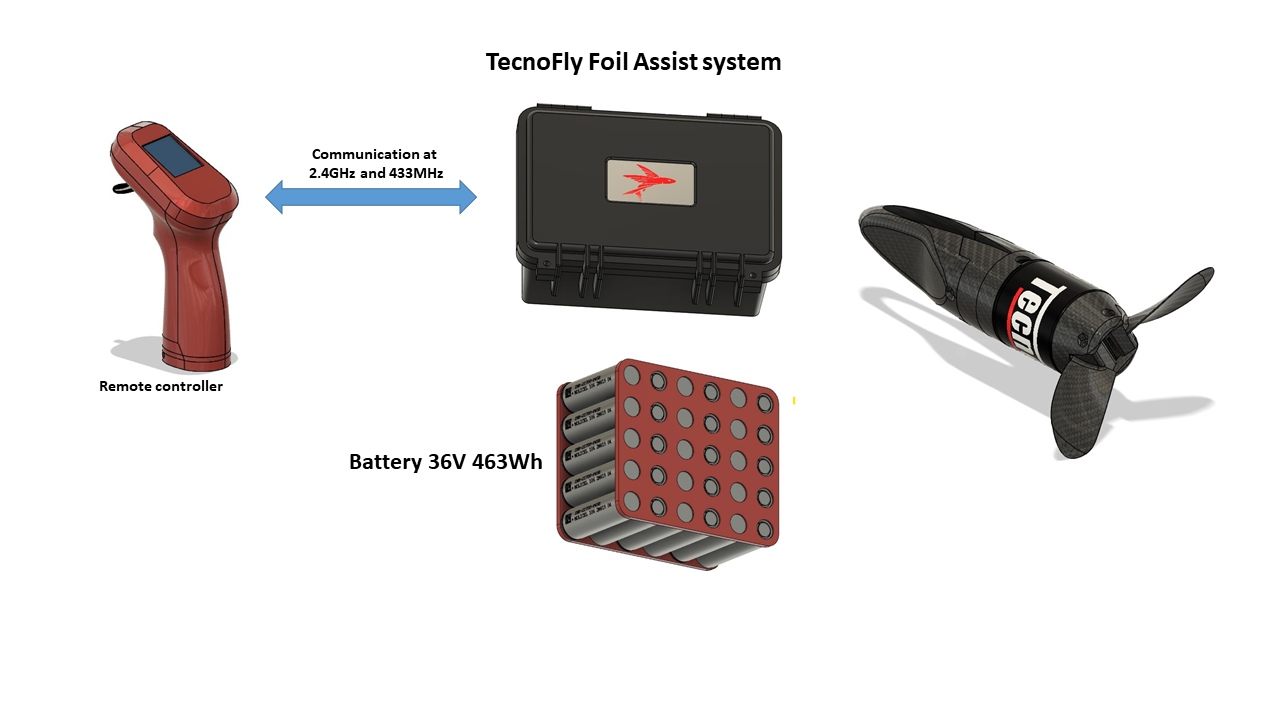

The system

Features:
- Weight of the kit (box, motor and battery) 3.5Kg
- Max trust of the propeller 28Kg
- Riding time from 20 up to 45 minutes (depend from several factors)
- Battery MAX Capacity 463Wh

Read More
#

#

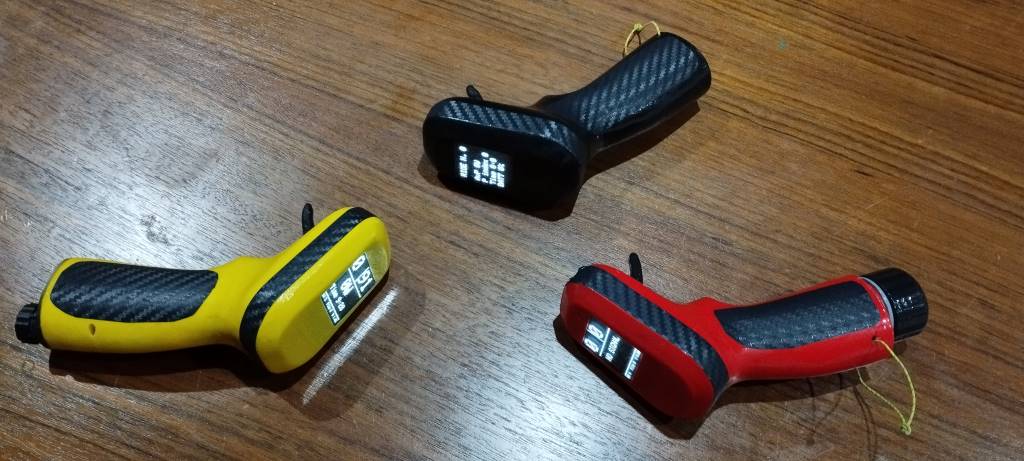

TecnoFly remote controller

features:

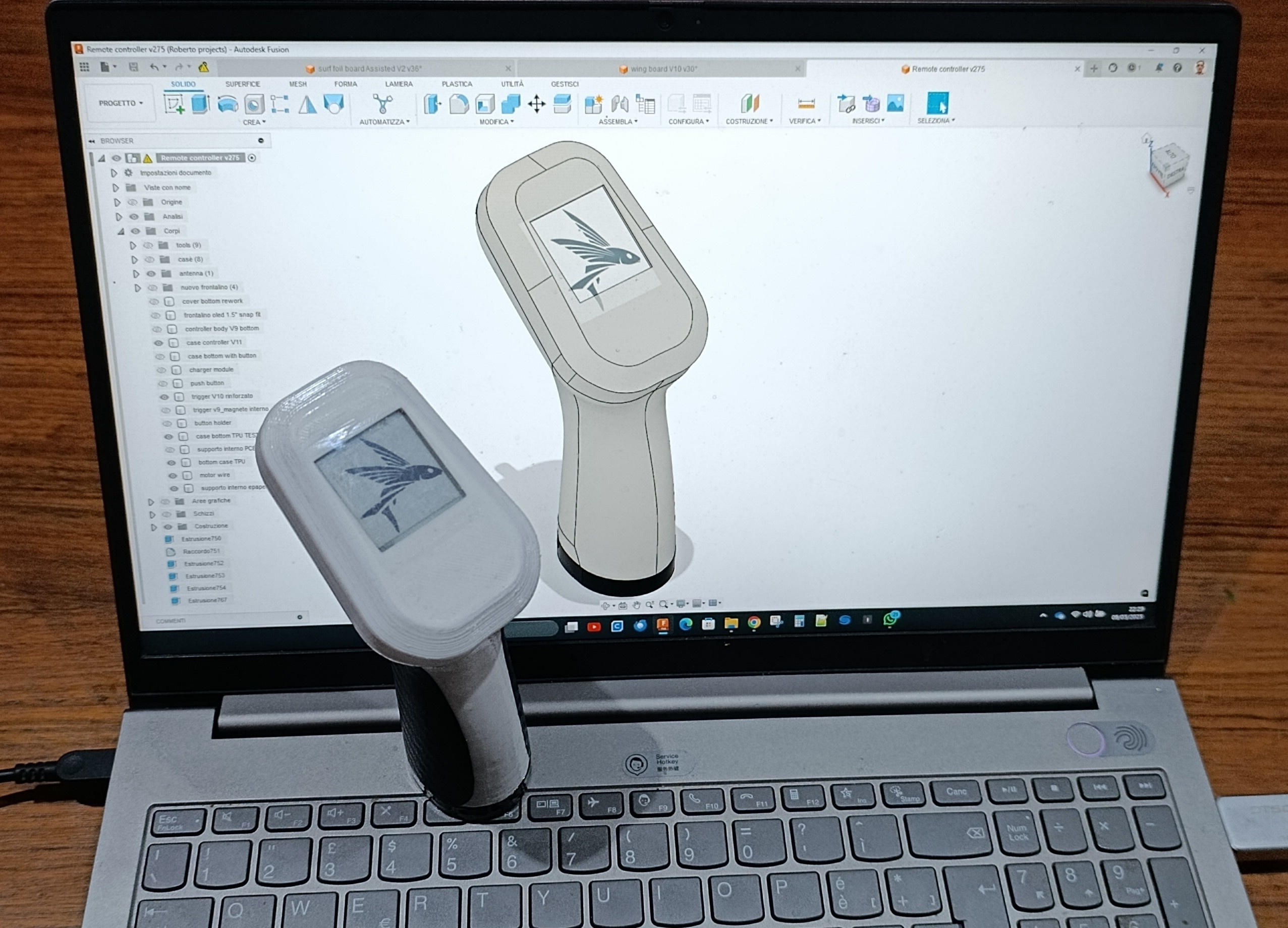

- Ergonomic case in 4 parts by 3d printing
- Display OLed 1.5 inch
- Wireless communication at 2.4GHz and 433MHz (dual Band)
- Firmware upgradable by server (WiFi)
- Recording VESC data of riding in the internal memory of the receiver
- WiFi hot spot of the receiver to analize data and setting
- Wireless charge system
- Vibration alarm for battery low

Read More
#

#

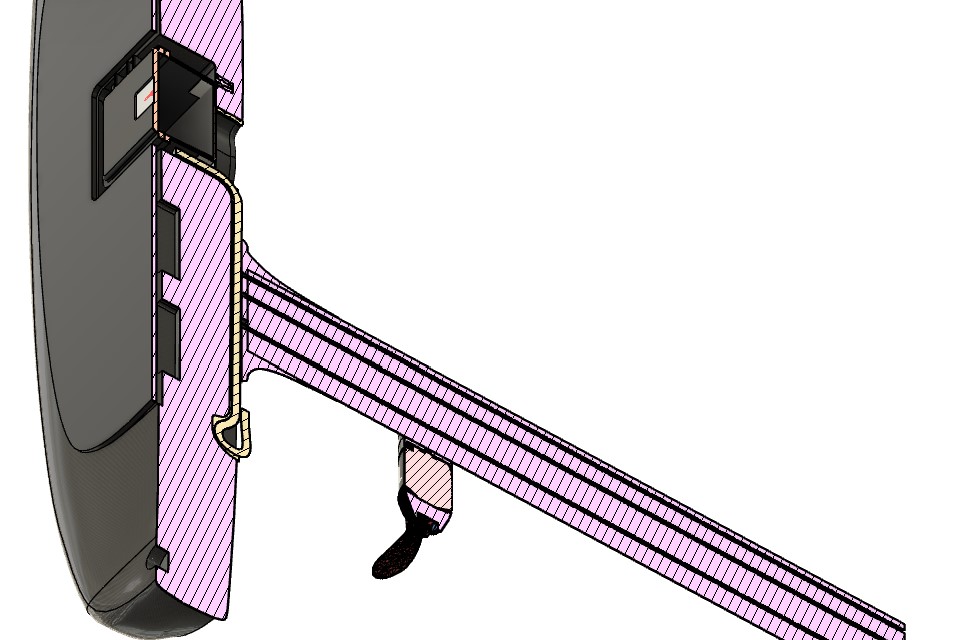

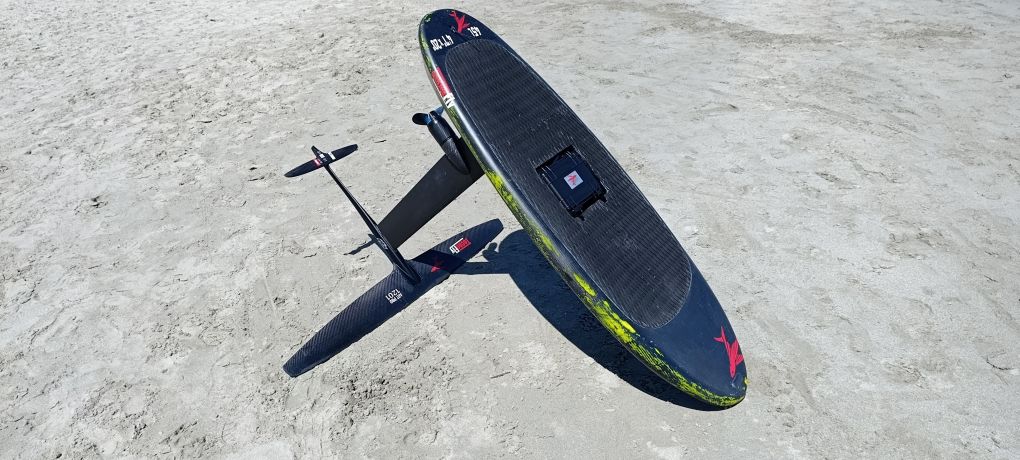

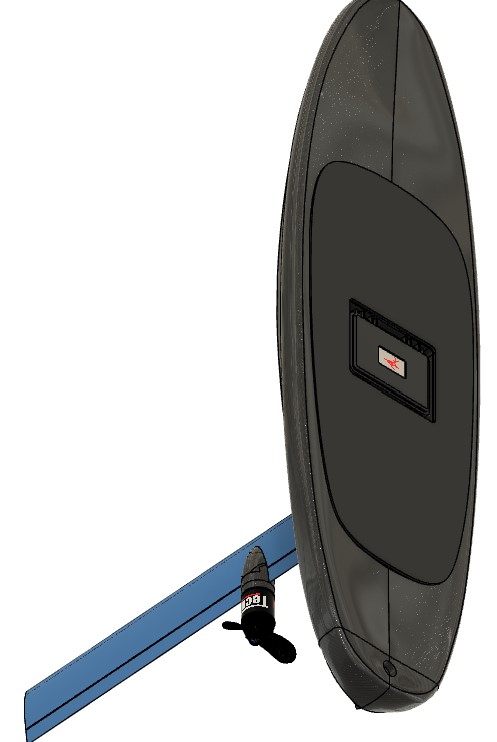

Integration system in the board

This in my solution to integrate the electric system into a dedicated board.

Read More
